Processing materials

Medium hardness and brittleness materials such as limestone, bluestone,

and coal grinding stone

Production capacity

100-3000 t/h

Feed particle size

≤1200mm

Performance &characteristics

1. High yield/One break molding/Adjustable grain size for production/Durable and sturdy/Easy to maintain

2. The hourly output can reach 3000 tons, with a maximum feed particle size of 1200mm, which can crush wet materials and increase the output by 30%

compared to similar products.

3. The method of controlling the particle size of the castor strip has been changed, and the particle size can be adjusted using a wrench or hydraulic adjustment

bolt, resulting in a reasonable grading of the finished material.

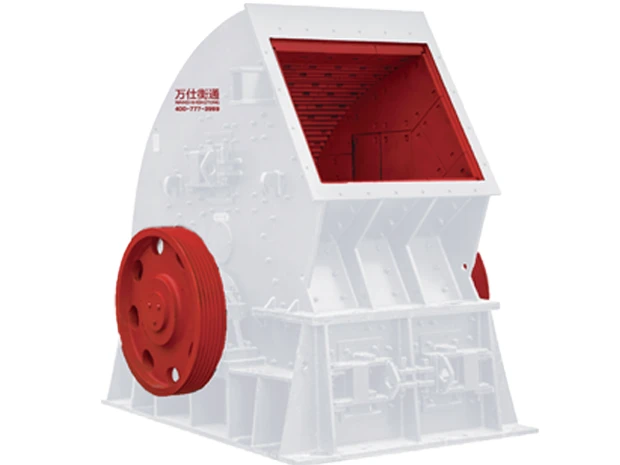

4. The snail shell structure design has strong impact resistance on both the inside and outside, and the casing is sturdy and not deformed. It has obtained a

design patent for its appearance: the wear-resistant parts are made of excellent materials, and the wear-resistant edge protection is used to protect the hammer

disc. The service life of the hammer disc is increased by 4-6 times.

5. Multiple observation doors are installed in the machine body, and large machines are equipped with hydraulic shaft extraction devices to facilitate the

replacement of hammer heads and shafts; The wear-resistant parts are fastened with bolts for easy disassembly.
