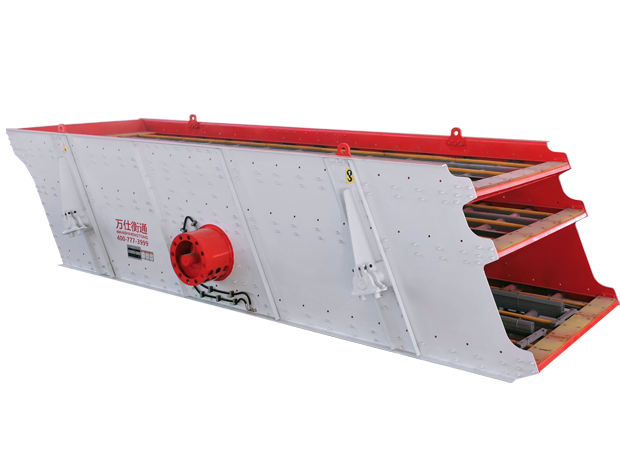

Wanshihengtong YK/YZS series vibrating screen is a product designed by the company for stone screening. It is a new type of vibrating screen with multiple layers and high screening efficiency, mainly composed of screen box, screen frame, screen mesh,vibrating motor, motor pedestal, vibration damping spring, bracket, etc. The vibrating screen adopts a cylindrical eccentric shaft exciter and eccentric block to adjust the amplitude in structure. The advanced rivet connected assembly frame structure improves the service life of the equipment, and has advantages such as low investment, low energy consumption, and wide applicability.

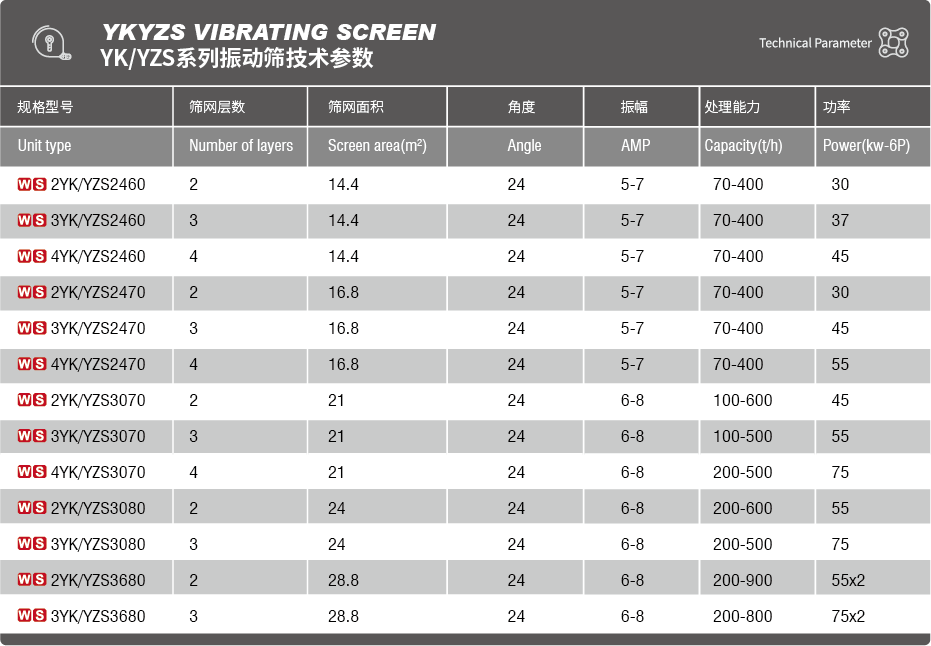

Production capacity

70-900 t/h

Applicable fields

Suitable for screening sand and stone materials in quarries, and can also be used for product grading in industries such as coal preparation, mineral processing, building materials, electricity, and chemical engineering.

Operational principle

The YK/YZS series vibrating screen adopts an internal eccentric shaft as the excitation force, and uses a motor to drive the eccentric shaft to rotate and then link the vibrating screen to perform circular motion trajectories of up, front, down, and back, so that the screened materials are evenly distributed and quickly slide through the screen to complete the screening work.

Performance &characteristics

1. The lubrication system is divided into two types: grease lubrication and thin oil lubrication.

2. Using eccentric blocks as the excitation force, the excitation force is strong.

3. The sieve crossbeam and sieve box are connected with high-strength rivets without welding.

4. The screen machine has a simple structure and convenient and fast maintenance. The thin oil vibrating screen has intelligent constant temperature and is

maintenance free for life.

5. Adopting a small amplitude, high frequency, and large inclination structure, the machine has high screening efficiency, large processing capacity, long service

life, low power consumption, and low noise.
