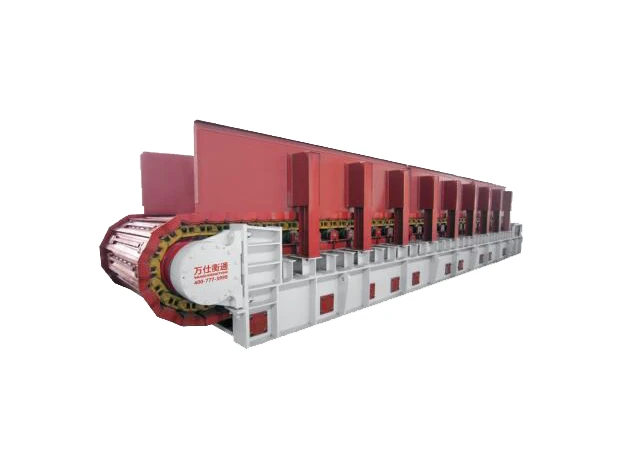

? It includes a brake device to prevent the conveyor chain from reversing when installed in an angle.

? The head device uses 13-27 tooth sprockets with odd and even teeth separated, doubling the lifespan.

? The head device sprockets are split-type, so the sprockets can be replaced without disassembling the chain plate, ** maintenance

easier.

? Composite spring-type buffer tensioning mechanism reduces impact damage, extending the lifespan.

? The application of a structure where the guided support wheels and tail shaft reversing pulleys are embedded between the inner links of

the chain has completely resolved misalignment .

? Tank chains are used for transmission, with small pitch errors, no lubrication required, easy installation, good interchangeability, and

long service life.

? The main shaft adopts a keyless shaft with an expansion sleeve connection to the sprocket and star wheel, ** installation,

disassembly, and maintenance very convenient.

? The drive system uses an orthogonal planetary compound reducer, which is lightweight, has high mechanical efficiency, a long service

life, a compact structure, and occupies less space.

? The tail device design is special, suitable for wet and rainy areas, preventing material accumulation from causing chain tooth skipping

and production interruptions.
